Heavy Machining
HEAVY

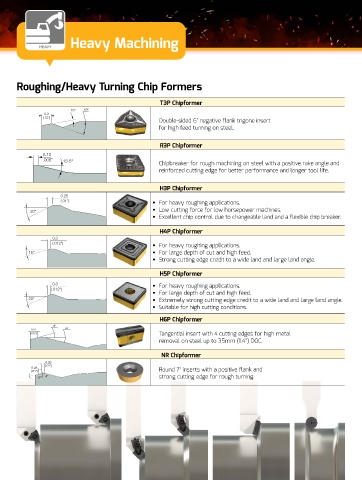

Roughing/Heavy Turning Chip Formers

T3P Chipformer
10° 19°
0.3
(.12”)
Double-sided 6˚ negative flank trigone insert
for high feed turning on steel.

R3P Chipformer
0.12
.005” 13.5° Chipbreaker for rough machining on steel with a positive rake angle and
reinforced cutting edge for better performance and longer tool life.

H3P Chipformer
0.25
(.01”) • For heavy roughing applications.
• Low cutting force for low horsepower machines.
20°
• Excellent chip control due to changeable land and a flexible chip breaker.

H4P Chipformer
0.3
(.012”) • For heavy roughing applications.
15° • For large depth of cut and high feed.
• Strong cutting edge credit to a wide land and large land angle.

H5P Chipformer
0.3 • For heavy roughing applications.
(.012”)
• For large depth of cut and high feed.
20° • Extremely strong cutting edge credit to a wide land and large land angle.
• Suitable for high cutting conditions.
H6P Chipformer
15 º
0.31 14 º
(.012”) Tangential insert with 4 cutting edges for high metal
removal on steel up to 35mm (1.4") DOC.

NR Chipformer
0.26
(.01”)
0.28 Round 7° inserts with a positive flank and
(.01”)
17° 4° strong cutting edge for rough turning.
