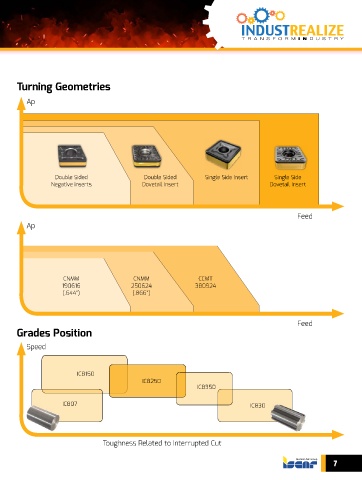

Turning Geometries

          Ap














                    Double Sided                 Double Sided         Single Side Insert     Single Side
                  Negative inserts               Dovetail Insert                            Dovetail Insert




                                                                                                     Feed
          Ap










                      CNMM                    CNMM                  CCMT
                      190616                 250624                380924
                      (.644”)                 (.866”)




                                                                                                     Feed
       Grades Position


          Speed




                           IC8150
                                                 IC8250
                                                                   IC8350

                      IC807                                                          IC830






                                    Toughness Related to Interrupted Cut



                                                                                                                 7
