P. 9

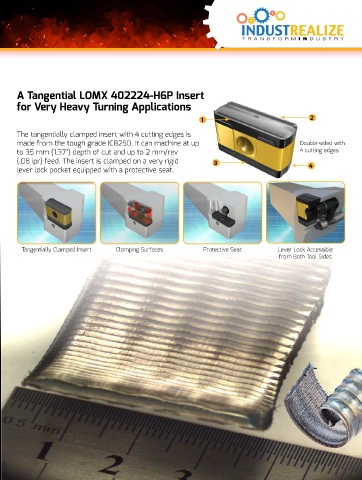

A Tangential LOMX 402224-H6P Insert
for Very Heavy Turning Applications
1 2
The tangentially clamped insert with 4 cutting edges is
made from the tough grade IC8250. It can machine at up Double-sided with
to 35 mm (1.37") depth of cut and up to 2 mm/rev 4 cutting edges
(.08 ipr) feed. The insert is clamped on a very rigid 3
lever lock pocket equipped with a protective seat. 4
Tangentially Clamped Insert Clamping Surfaces Protective Seat Lever Lock Accessible
from Both Tool Sides
9
