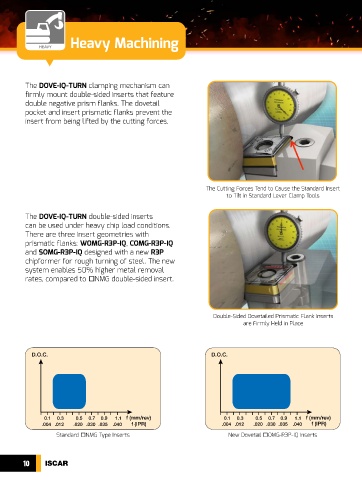

Page 10 - ISCARs-solutions-for-Heavy-Machining-2022
P. 10
Heavy Machining
HEAVY
The DOVE-IQ-TURN clamping mechanism can
firmly mount double-sided inserts that feature
double negative prism flanks. The dovetail
pocket and insert prismatic flanks prevent the
insert from being lifted by the cutting forces.
The Cutting Forces Tend to Cause the Standard Insert
to Tilt in Standard Lever Clamp Tools
The DOVE-IQ-TURN double-sided inserts
can be used under heavy chip load conditions.
There are three insert geometries with
prismatic flanks: WOMG-R3P-IQ, COMG-R3P-IQ
and SOMG-R3P-IQ designed with a new R3P
chipformer for rough turning of steel. The new
system enables 50% higher metal removal
rates, compared to NMG double-sided insert.
Double-Sided Dovetailed Prismatic Flank Inserts
are Firmly Held in Place
D.O.C. D.O.C.
0.1 0.3 0.5 0.7 0.9 1.1 f (mm/rev) 0.1 0.3 0.5 0.7 0.9 1.1 f (mm/rev)
.004 .012 .020 .030 .035 .040 f (IPR) .004 .012 .020 .030 .035 .040 f (IPR)
Standard NMG Type Inserts New Dovetail OMG-R3P-IQ Inserts
