Heavy Machining
HEAVY

e
odes
y C

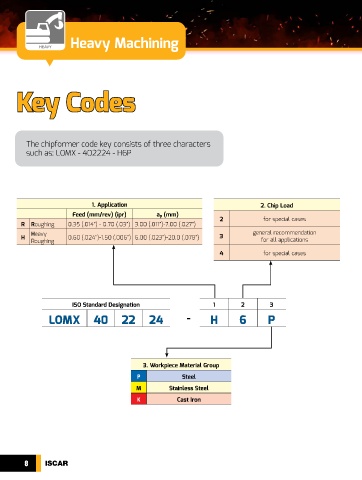

K Key Codes

The chipformer code key consists of three characters
such as: LOMX - 402224 - H6P

1. Application 2. Chip Load
Feed (mm/rev) (ipr) ap (mm)
2 for special cases
R Roughing 0.35 (.014”) - 0.70 (.03”) 3.00 (.011”)-7.00 (.027”)
Heavy general recommendation
H 0.60 (.024”)-1.50 (.006”) 6.00 (.023”)-20.0 (.078”) 3
Roughing for all applications
4 for special cases

ISO Standard Designation 1 2 3

LOMX 40 22 24 - H 6 P

3. Workpiece Material Group
P Steel

M Stainless Steel
K Cast Iron
