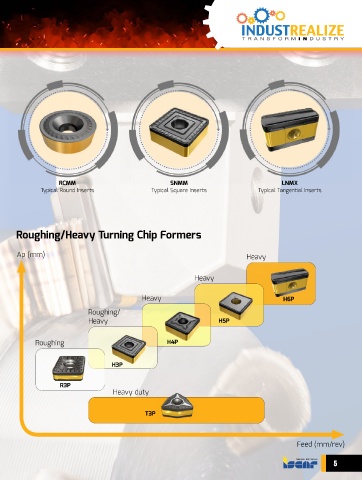

RCMM                                 SNMM                                  LNMX
               Typical Round Inserts                Typical Square Inserts              Typical Tangential Inserts







      Roughing/Heavy Turning Chip Formers


       Ap (mm)                                                                      Heavy




                                                                   Heavy


                                                 Heavy                                          H6P

                               Roughing/
                               Heavy                                       H5P



             Roughing                                    H4P



                                       H3P


                     R3P
                                       Heavy duty


                                                  T3P




                                                                                                     Feed (mm/rev)



                                                                                                                 5
   1   2   3   4   5   6   7   8   9   10
